What is a screw pump used for?

A screw pump — also known as a progressive cavity pump or single screw pump — is a positive displacement pump that transfers fluid through the rotation of one or more helical screws. Unlike centrifugal pumps, screw pumps move fluid axially along the screw axis with minimal turbulence, making them exceptionally well-suited for handling viscous, shear-sensitive, or solids-laden media. From wastewater treatment plants to food processing lines, screw pumps are indispensable across dozens of industrial sectors. This article explores their working principles, applications, structural components, and why choosing the right screw pump manufacturer matters for long-term operational efficiency.

How Screw Pumps Work: The Core Operating Principle

The screw pump working principle is based on positive displacement. In a single screw pump (progressive cavity pump), a single screw rotor rotates eccentrically inside an elastomeric stator. The rotor is typically made of hardened steel with a helical profile, while the stator is a double-helix elastomer sleeve housed in a metal casing. As the rotor turns, sealed cavities are formed between the rotor and stator, and fluid is progressively pushed from the suction end to the discharge end in a smooth, pulsation-free flow.

This mechanism distinguishes screw pumps from peristaltic or gear pumps. Because cavities are sealed and move continuously without back-flow, pressure build-up is consistent and flow is proportional to rotational speed. According to engineering references from the Hydraulic Institute (HI), progressive cavity pumps are rated for viscosities from 1 cP to over 1,000,000 cP, making them among the most versatile fluid-handling technologies available.

The stator for progressive cavity pumps is a critical wear component. Its elastomer material — natural rubber, NBR, EPDM, or FKM — must be matched to the chemical properties and temperature of the pumped fluid. A mismatch leads to premature swelling or cracking of the stator. This is why selecting the correct spare parts for progressive cavity pumps from an experienced screw pumps manufacturer is essential for pump longevity.

Figure 1: Isometric 3D schematic of a single screw pump (progressive cavity pump), showing the helical rotor, elastomeric stator, inlet/outlet flanges, and drive motor. Fluid travels axially from inlet to outlet as sealed cavities progress along the rotor.

Primary Uses of Screw Pumps Across Industries

The most widespread screw pump uses span environmental, industrial, food, and energy sectors. Their gentle, low-shear pumping action is ideal for fluids that must not be emulsified, aerated, or degraded. Below is a structured overview of the key sectors and the specific role screw pumps play in each.

Table 1: Major industries utilizing screw pumps and their typical application scenarios
Industry	Typical Application	Fluid Type	Pump Variant
Wastewater Treatment	Sludge transfer, biogas slurry	High-viscosity sludge with solids	Sludge screw pump
Food and Pharmaceutical	Sauce, cream, dough, pharmaceutical slurry	Viscous, shear-sensitive	Food screw pump (hygienic)
Petrochemical	Crude oil transfer, polymer dosing	Crude oil, heavy fuel oil	Single screw pump
Paper and Pulp	Pulp stock, ink, coating transfer	Fibrous suspension	Sewage screw pump / vertical screw pump
Chemical	Chemical dosing, slurry transfer	Corrosive, abrasive	Single screw pump with chemical-resistant stator
Mining and Energy	Mine dewatering, coal slurry	Abrasive slurry	Vertical screw pump

Screw pumps in wastewater (sewage screw pump and sludge screw pump applications) represent one of the largest global usage segments. According to the Global Water Intelligence Market Report 2022, wastewater treatment infrastructure investment exceeded USD 130 billion annually, with progressive cavity pumps accounting for a significant share of sludge-handling equipment procurement worldwide. Their ability to handle sludge at dry solids concentrations of up to 10% DS makes them far superior to centrifugal alternatives in such conditions.

Application Performance Comparison: Screw Pump vs Other Pump Types

Understanding where screw pumps outperform alternatives helps engineers and procurement managers make informed decisions. The following horizontal bar chart compares key performance attributes across four common industrial pump types for viscous-fluid applications.

Figure 2: Horizontal bar chart comparing single screw pumps, twin-screw pumps, gear pumps, and centrifugal pumps across six key performance dimensions. Single screw pumps consistently rank highest for viscosity handling, solids tolerance, flow consistency, and suitability for shear-sensitive fluids.

As the chart demonstrates, single screw pumps lead in viscosity handling and shear sensitivity, which explains their prevalence in food screw pump applications (e.g., tomato paste, yogurt, chocolate) and pharmaceutical slurry transfers. Gear pumps are competitive in energy efficiency for clean, low-viscosity fluids, but their close-clearance components are unsuitable for solids-laden or abrasive media. Centrifugal pumps, while cost-effective for low-viscosity water-like fluids, lose efficiency rapidly as viscosity rises above 200 cP and are entirely unsuited to progressive cavity pump territory.

Types of Screw Pumps and Their Structural Differences

Understanding the various types of screw pumps helps engineers select the right configuration for their specific application. The screw water pump market encompasses several distinct configurations, each optimized for different fluid properties and installation environments.

Single Screw Pump (Progressive Cavity Pump)

The most widely deployed variant, the single screw pump uses one helical rotor inside an elastomeric stator. It handles viscosities up to 1,000,000 mPas, solids content up to 40% by weight, and delivers flow rates from 0.01 m3/h to over 500 m3/h depending on model size. The single screw rotor is the heart of the pump — its chrome-plated hardened steel construction provides wear resistance in abrasive services, while its helical geometry determines the pump's volumetric efficiency.

Twin-Screw Pump

Twin-screw pumps use two intermeshing helical rotors, enabling higher flow rates and pressures than single-screw designs. They are favored in the oil and gas sector for multiphase flow applications. However, they are generally unsuited to highly viscous or abrasive fluids due to their tighter rotor-rotor clearances.

Vertical Screw Pump

The vertical screw pump is a submersible or semi-submersible variant designed for sump-mounted or pit-installed operation. It eliminates the need for external priming and is ideal for sumps, tanks, and below-grade installations. The vertical configuration minimizes floor space usage and is common in municipal wastewater lift stations and industrial effluent pits.

Sewage Screw Pump and Sludge Screw Pump

These are functionally differentiated by the concentration and nature of solids in the pumped medium. Sewage screw pumps handle raw municipal wastewater with fibrous and solid content, while sludge screw pumps are engineered for thickened biosolids (typically 2–8% DS) or even dewatered cake (up to 30% DS). Both rely on progressive cavity technology but use reinforced stators and heavy-duty universal joints to handle the higher torque demands of dense media.

Screw Pump Flow Rate vs. Rotational Speed: Performance Curve

One of the most important characteristics of a screw pump is the linear relationship between rotational speed (RPM) and volumetric flow rate. Unlike centrifugal pumps whose flow-pressure curve is parabolic and sensitive to viscosity changes, screw pumps deliver a nearly constant flow per revolution across a wide range of operating pressures. The following line chart illustrates how flow rate scales with speed for a representative single screw pump at two differential pressures.

Figure 3: Performance curves showing the near-linear relationship between rotational speed and flow rate for a representative single screw pump at 2-bar and 6-bar differential pressures. The slight reduction at higher pressure is due to increased internal slip, which is a normal characteristic of positive displacement pump design.

This linearity is practically significant: it means that a variable frequency drive (VFD) can precisely control flow rate by adjusting motor speed, enabling accurate metering and dosing without additional flow control valves. For chemical dosing, food portioning, or pharmaceutical filling applications, this characteristic eliminates the need for downstream measurement corrections. The slight flow decrease at higher differential pressures (visible in the chart) is due to increased slip — a well-understood phenomenon managed by selecting the correct stator geometry and elastomer for the application.

Screw Pump Components: What Makes a Quality Pump System

A comprehensive understanding of screw pump accessories and internal components is essential for maintenance planning and total cost of ownership analysis. Progressive cavity pumps consist of a relatively small number of key components, which simplifies spare parts management — but each component must meet strict tolerances to ensure long-term reliability.

Single Screw Rotor: The hardened chrome-steel helical rotor. It must maintain dimensional accuracy to within microns to ensure consistent cavity sealing with the stator. Rotor geometry (pitch, eccentricity, diameter) is unique to each pump model and stage configuration.
Stator for Progressive Cavity Pumps: The double-helix elastomeric sleeve. Elastomer selection (NBR, EPDM, FKM, natural rubber) is matched to chemical compatibility, temperature, and abrasion requirements. The stator is typically the first component to require replacement during scheduled maintenance.
Universal Joint / Drive Rod Assembly: Transmits eccentric rotary motion from the motor to the rotor. Subject to cyclic bending stress, these joints must be manufactured from high-quality alloy steel and properly lubricated.
Mechanical Seal / Packing Seal: Prevents fluid from leaking along the drive shaft. Selection between single, double, or tandem mechanical seals depends on fluid toxicity, pressure, and temperature.
Suction and Discharge Flanges / Casing: The pressure-containing casing in cast iron, ductile iron, stainless steel, or duplex steel depending on corrosion requirements.
Gear Reducer / Drive Coupling: Most progressive cavity pumps operate at speeds between 60 and 300 RPM, requiring a gear reducer between the motor (typically 1400–3000 RPM) and the pump shaft.

As a leading screw pumps manufacturer, Jingjiang Meijia Pump Industry Co., Ltd. supplies a full range of spare parts for progressive cavity pumps compatible with most major global pump brands. Whether the requirement is a replacement single screw rotor, a new stator for progressive cavity pumps, or a complete drive rod assembly, Meijia's engineering team provides parts that meet or exceed OEM dimensional and material specifications. This cross-compatibility makes Meijia a valued supplier of screw pump accessories for maintenance managers seeking to reduce spare parts inventory complexity.

Industry Adoption Trends: Screw Pump Market Growth by Sector

The global progressive cavity pump market has expanded steadily over the past decade, driven by wastewater infrastructure investment, food safety regulations mandating hygienic pump designs, and the oil and gas industry's need for reliable multiphase transfer equipment. The following column chart illustrates estimated global progressive cavity pump deployment growth across major sectors from 2019 to 2024, indexed to 2019 = 100.

Figure 4: 3D column chart showing progressive cavity pump market adoption index across five major industries from 2019 to 2024 (estimated). Wastewater and food/pharma sectors show the strongest growth, driven by tightening environmental standards and food safety regulations. Data is illustrative and indexed to 2019 baseline = 100, based on industry trend analysis.

The wastewater treatment sector shows the most dramatic growth trajectory, reflecting global policy commitments to expanding municipal sewage infrastructure, particularly in Asia-Pacific and Latin America. The food screw pump segment has grown rapidly due to hygienic design requirements introduced by standards such as EHEDG (European Hygienic Engineering and Design Group) and 3-A Sanitary Standards, which favor progressive cavity pumps for their CIP/SIP (clean-in-place/sterilize-in-place) compatibility. The chemical and paper/pulp sectors show steadier, incremental growth.

Screw Pump Capability Radar: Multi-Dimensional Performance Overview

To provide a comprehensive view of single screw pump performance relative to twin-screw and centrifugal alternatives, the radar chart below evaluates five key dimensions simultaneously. This type of multi-axis comparison is recommended in engineering selection methodologies from sources such as the European Association of Pump Manufacturers (Europump) and the Hydraulic Institute (HI).

Figure 5: Radar chart comparing single screw pumps, twin-screw pumps, and centrifugal pumps across five engineering performance dimensions. The single screw pump's polygon (green) is notably larger in the viscosity range, solids handling, shear sensitivity, and flow accuracy dimensions — the four criteria most critical in progressive cavity pump applications. Centrifugal pumps show an advantage only in maintenance ease for clean-fluid services.

The radar comparison validates engineering practice: single screw pumps are the preferred solution when fluid complexity is high — whether that means elevated viscosity, significant solids content, shear-sensitive biology, or the requirement for precise volumetric metering. Centrifugal pumps remain cost-effective for high-flow, low-viscosity, clean-fluid applications where their efficiency and low acquisition cost justify selection. As application requirements move away from this clean-fluid ideal, the single screw pump's comprehensive capability profile becomes increasingly difficult to match.

Meijia Single Screw Pump Product Range: Real-World Performance

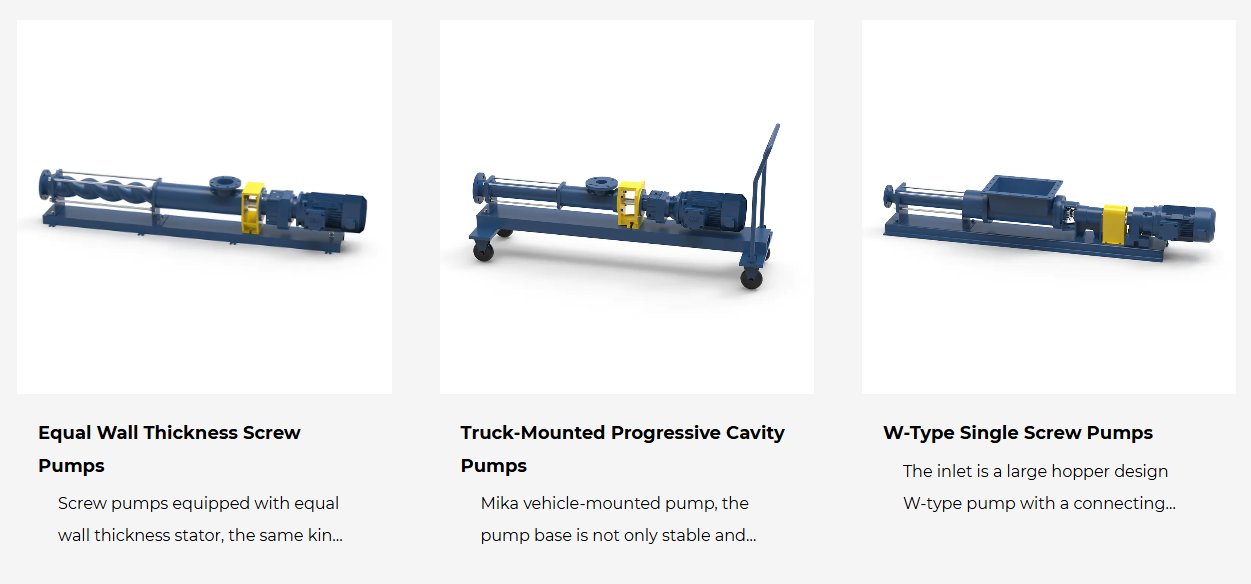

The following image shows three representative models from Jingjiang Meijia Pump Industry's single screw pump product line, demonstrating the range of configurations available for different installation and application requirements.

Meijia Single Screw Pump Product Range - Equal Wall Thickness, Truck-Mounted, and W-Type Progressive Cavity Pumps

Figure 6: Meijia Pump Industry single screw pump product lineup. From left to right: Equal Wall Thickness Single Screw Pump for standard viscous fluid service; Truck-Mounted Progressive Cavity Pump for mobile transfer operations; W-Type Single Screw Pump with large hopper inlet for high-viscosity and semi-solid materials. All models incorporate precision-machined single screw rotors and interchangeable stator for progressive cavity pump designs.

As shown above, Meijia's product range covers the primary installation scenarios encountered in field applications. The Equal Wall Thickness Single Screw Pump delivers consistent stator wall compression across its entire length, significantly extending stator service life compared to conventional uniform-bore designs — particularly important in abrasive sludge screw pump applications. The Truck-Mounted Progressive Cavity Pump responds to mobile dewatering and emergency transfer requirements, offering rapid deployment without fixed infrastructure. The W-Type pump with its oversized hopper inlet is designed specifically for high-concentration sludge, paste, and semi-solid materials that cannot gravity-feed into standard inlet configurations.

Jingjiang Meijia Pump Industry Co., Ltd., located at No. 36 Xintai Road, Jingjiang Economic and Technological Development Zone, Jiangsu Province, brings decades of manufacturing experience to single screw pump design and production. As a professional screw pumps manufacturer, Meijia integrates advanced CNC machining, precision rubber vulcanization for stator production, and rigorous in-house quality control across every production stage. The company serves customers across environmental water treatment, chemical, paper and pulp, food and pharmaceutical, petrochemical, and energy sectors — applying deep application knowledge to match the right pump configuration and screw pump accessories to each duty.

Selection Criteria: Choosing the Right Screw Pump for Your Application

Selecting a screw pump requires a structured evaluation of fluid properties, system conditions, and operational requirements. The following parameters should be defined before approaching a screw pumps manufacturer for a pump recommendation.

Fluid Viscosity and Rheology: Dynamic viscosity (mPas or cP) at operating temperature. Non-Newtonian fluids (pseudoplastic, thixotropic) require additional data — shear rate vs. viscosity curves if available.
Solids Content and Particle Size: Percentage by weight or volume, maximum particle diameter, fibrous or abrasive nature. This determines stator elastomer hardness and rotor surface treatment.
Required Flow Rate and Differential Pressure: Minimum, normal, and maximum flow rates (m3/h or L/min) and system pressure differential (bar or psi). These determine pump stage count and rotor/stator geometry.
Temperature Range: Operating and maximum fluid temperature. Temperature affects elastomer performance — high temperatures may require FKM or EPDM stators instead of NBR.
Chemical Compatibility: Fluid pH, solvent content, and oxidizing agent presence must be matched to stator elastomer and casing material (cast iron, stainless steel, duplex).
Installation Orientation and Space: Horizontal, vertical screw pump, or inclined installation. Available floor space and inlet head conditions affect pump configuration selection.
Duty Cycle and Operational Hours: Continuous, intermittent, or standby operation. Affects seal type, bearing specification, and recommended maintenance intervals for screw pump accessories.

Meijia's engineering team reviews these parameters systematically to recommend the correct pump model, stator elastomer, seal configuration, and drive arrangement. This consultative approach, backed by extensive manufacturing experience with single screw pumps across diverse industries, reduces specification errors and avoids costly premature failures in the field.

Maintenance Strategy and Spare Parts Management for Progressive Cavity Pumps

A well-executed maintenance strategy dramatically extends the service life of progressive cavity pumps and reduces total cost of ownership. The two primary wear items in a single screw pump are the stator for progressive cavity pumps and the single screw rotor, both of which follow predictable wear patterns that allow condition-based replacement planning.

Stator Replacement Indicators

Stator wear manifests as a gradual reduction in volumetric efficiency — the pump delivers less flow at the same speed. Operators should monitor discharge flow rate against speed regularly. A decline of more than 10–15% at the same speed and pressure typically signals that stator replacement should be scheduled. Operating a worn stator causes increased internal slip, heat generation, and accelerated rotor wear. Meijia supplies universal stator for progressive cavity pumps in all major elastomer types and compatibility profiles, enabling operators to replace stators without being locked to original equipment manufacturers' extended lead times.

Drive Rod and Joint Inspection

Universal joint wear is identified by abnormal vibration, increased noise, or visual inspection during planned shutdowns. Replacement intervals vary widely with fluid abrasiveness and operating speed. In sewage screw pump and sludge screw pump applications, joints typically require inspection every 4,000–8,000 hours. Meijia's complete drive assemblies are manufactured from alloy steel with precision-machined joints, ensuring reliable power transmission and extended component life.

Dry-Running Protection

Dry running — operating the pump without fluid — is the single most damaging condition for a screw pump. Without lubrication and cooling from the process fluid, the stator elastomer heats rapidly and can be destroyed within minutes. Modern pump installations should incorporate dry-run detection (stator temperature sensors, flow switches, or pressure monitoring) with automatic shutdown interlocks. Meijia's pump systems can be supplied with integrated protection packages addressing this critical operational risk.

About Jingjiang Meijia Pump Industry Co., Ltd.

Jingjiang Meijia Pump Industry Co., Ltd. is located at No. 36 Xintai Road, Jingjiang Economic and Technological Development Zone, Jiangsu Province. It is a professional company engaged in the production, sales, and after-sales service of single-screw pumps and high-quality single-screw pump spare parts.

As a dedicated screw pumps manufacturer and supplier, Meijia Pump Industry brings together numerous experienced, technically mature engineers specializing in the design, manufacturing, inspection, and complete system integration of screw pumps. Meijia single screw pump products feature advanced technology, complete structural design, diverse configurations, comprehensive specifications, and demonstrated durability. They are widely deployed across environmental water treatment, chemical industry, paper and pulp, food and pharmaceutical, petrochemical, and energy sectors.

Meijia Pump Industry also provides universal screw pump accessories and spare parts for progressive cavity pumps compatible with major global single screw pump brands. Its strong production capacity, extensive practical experience, and mature technological capabilities provide reliable performance guarantees for all products supplied. The company's after-sales service center maintains a dedicated team of skilled engineers to deliver thorough post-delivery support. Meijia Pump Industry is your trusted partner in single screw pump technology, and industry leaders from all sectors are welcome to visit the facility and exchange technical expertise.

Frequently Asked Questions About Screw Pumps

Q1: What is the main difference between a single screw pump and a twin-screw pump?

A single screw pump (progressive cavity pump) uses one helical rotor rotating inside an elastomeric stator, making it ideal for highly viscous, shear-sensitive, or solids-laden fluids. A twin-screw pump uses two intermeshing rotors in a metal casing, offering higher flow rates and pressures for cleaner, lower-viscosity fluids but with less tolerance for abrasives and particles. For applications like sludge transfer, food processing, or chemical dosing, the single screw pump's design advantages are typically decisive.

Q2: How often should the stator for a progressive cavity pump be replaced?

Stator service life varies significantly with fluid abrasiveness, operating pressure, and temperature. In clean or moderately abrasive services, stators may last 8,000–15,000 operating hours. In highly abrasive applications (e.g., fine sand slurry), replacement may be required every 2,000–4,000 hours. Monitoring volumetric efficiency — the ratio of actual to theoretical flow at a given speed — is the most reliable indicator. A decline exceeding 10–15% at the same operating conditions typically signals that stator replacement should be planned.

Q3: Can screw pumps handle dry running?

No. Dry running is highly damaging to progressive cavity pumps. The elastomeric stator relies on the pumped fluid for lubrication and cooling. Without fluid, friction between the rotor and stator generates rapid heat build-up, which can destroy the stator in a matter of minutes. Installations should always incorporate dry-run protection — such as flow switches, pressure sensors, or stator temperature monitors — with automatic shutdown interlocks to prevent accidental dry-run operation.

Q4: What elastomer material should I choose for my screw pump stator?

Elastomer selection depends on the fluid's chemical composition and operating temperature. NBR (nitrile rubber) is suitable for oils, fuels, and general aqueous services up to approximately 80C. EPDM is preferred for water, wastewater, and many chemical services, particularly at higher temperatures. FKM (Viton) is selected for aggressive solvents, acids, and high-temperature applications. Natural rubber excels in abrasive slurry services due to its resilience. Meijia's engineering team assesses chemical compatibility data to recommend the correct elastomer for each application.

Q5: Are Meijia spare parts compatible with other brand progressive cavity pumps?

Yes. Meijia Pump Industry specializes in manufacturing universal spare parts for progressive cavity pumps that are dimensionally compatible with most major global pump models. This includes single screw rotors, stators, drive rod assemblies, mechanical seals, and connecting rods. Compatibility is verified through dimensional inspection against OEM specifications. Using Meijia's interchangeable parts allows maintenance teams to consolidate spare parts inventory while maintaining reliable pump performance.

Q6: What makes a vertical screw pump different from a horizontal installation?

A vertical screw pump is oriented with its shaft in the vertical plane, allowing the pump to be submerged in or suspended above a sump, tank, or pit. This eliminates the need for external priming since the pump inlet is always immersed in the fluid. Vertical installation also reduces floor space requirements significantly. The mechanical design of vertical screw pumps must account for shaft weight and alignment under vertical loading conditions, which Meijia addresses through reinforced bearing arrangements and precision shaft alignment during manufacture.
